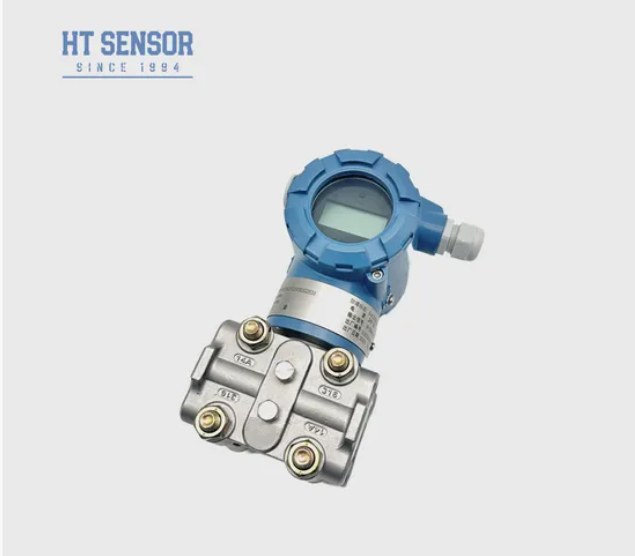

HTsensor Digital Capacitive Differential Pressure Transmitter with 24-Month Warranty Wide Temperature Range and Easy Installation
Product Details
| Rapporto massimo di svolta: | 100:1 | Produzione di shell: | IP65 |
|---|---|---|---|
| Codice HS: | 9026201090 | Peso: | 3,6 kg |
| Misura l'intervallo: | 0-100mpa | Segnale di uscita: | 4-20 Ma |
| Temperatura di conservazione: | Da -40 a 85 gradi Celsius | Costo di spedizione: | da negoziare |
| Evidenziare |
24-Month Warranty Differential Pressure Transmitter,Wide Temperature Range Pressure Sensor,Easy Installation Capacitive Pressure Transmitter |
||
Product Description
- The transmitter features a stainless steel structural design, making it compact and easy to install
- It undergoes strict temperature compensation and aging screening, ensuring stable and reliable performances
- The electrical interface can be selected as a plug-in or direct wiring option
- Suitable for measuring differential pressure of various gases or liquids in pipelines of industries such as petroleum, chemical, power, and hydrology
- Applied in industrial on-site processes such as petroleum, chemical, metallurgy, power generation, and hydrology
- Pressure measurement for pipelines and furnace chambers
- When selecting the product, please ensure that the measured medium is compatible with the product's contacting parts
- To ensure reliable operation, it is recommended to install a three-valve manifold between the measurement point and the transmitter
- During installation, position the pressure interfaces at both ends horizontally to minimize installation impact
- For special requirements (vibration, impact, EMI/RFI), please specify these in your order
