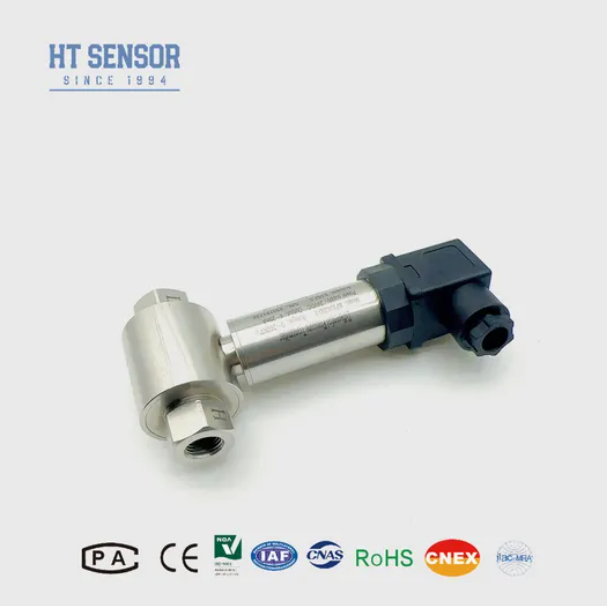

High Accuracy ±0.1% Differential Pressure Transmitter with Wide Temperature Range -40-85℃ and 300% Overload Pressure
Product Details
| Tipi di misura: | Pressione differenziale e pressione statica | Precisione: | ± 0,1% dell'arco |
|---|---|---|---|
| Temperatura ambiente: | - 40-85 °C | Peso: | 0,5 kg |
| Pressione di sovraccarico: | 300% FS | Azionare la temperatura: | -20 ~ 150 ℃ |
| Tipo di pressione: | Pressione differenziale | Connettore elettrico: | Terminal Block, cavo |
| Temperatura di lavoro: | -10~70℃ | Umidità relativa: | 5~98%RH |
| Porta di pressione: | G1/4, G1/2 1/4NPT, 1/2NPT ed altri | Tensione di alimentazione: | 24 (v) |
| Rapporto di riduzione: | 100:1 | Modello n: | HT3351 |
| Materiale abitativo: | Alluminio | ||
| Evidenziare |
High Accuracy Differential Pressure Transmitter,Wide Temperature Range Pressure Transmitter,300% Overload Pressure Transmitter |
||
Product Description
- Stainless steel construction for durability and easy installation
- Rigorous temperature compensation and aging screening ensure stable performance
- Flexible electrical interface options: plug-in or direct wiring
- Differential pressure measurement for gases/liquids in pipelines (petroleum, chemical, power, hydrology)
- Industrial process monitoring in petroleum, chemical, metallurgy, power generation
- Pipeline and furnace chamber pressure measurement
| Measurement Range | 0-10KPa...~2MPa |
|---|---|
| Pressure Type | Differential Pressure |
| Accuracy @ 25°C | ±0.25% (Typical) ±0.5% (Maximum) |
| Operating Temperature | -30°C~80°C |
| Housing Material | 304, 316L stainless steel |
| Protection Rating | IP65 |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V, 0.5~4.5V | 5VDC |
- Verify medium compatibility with product materials before selection
- Recommended installation with three-valve manifold for pressure regulation
- Position pressure interfaces horizontally for optimal performance
- Specify special requirements (vibration, EMI/RFI protection) when ordering
